ConstructionLine

The SketchUp JavaScript API is currently a labs feature.
Signup as a developer and try it out.

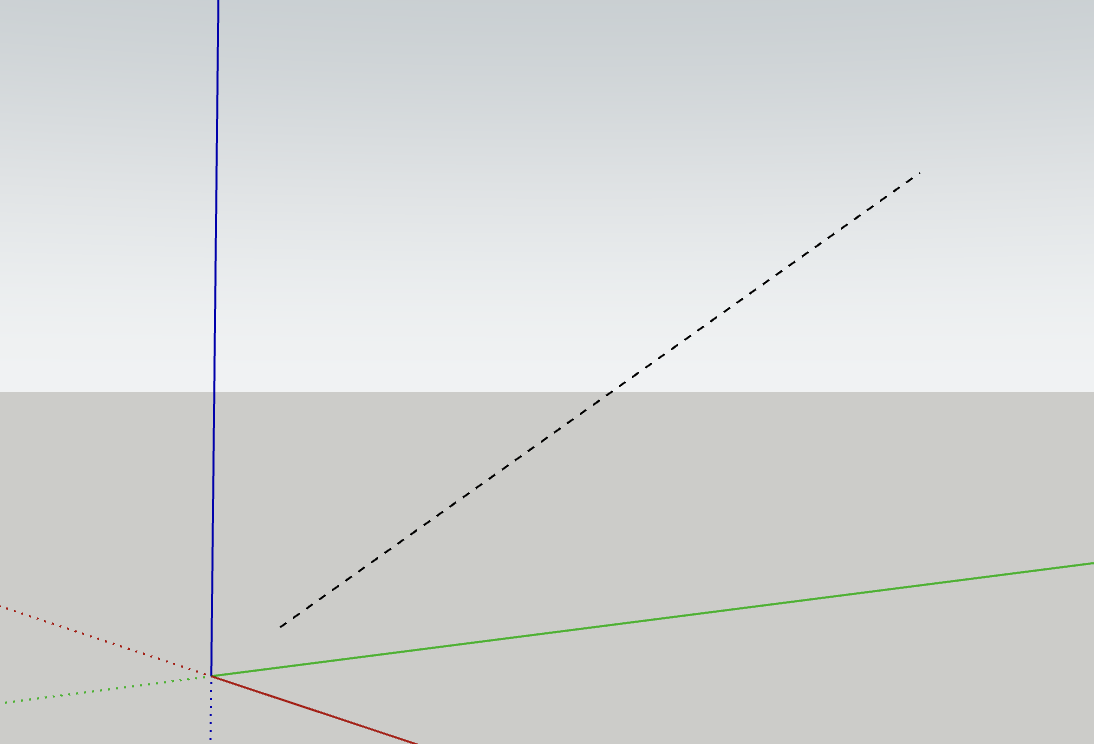

Creating a ConstructionLine

let model = await SketchUpApi.getActiveModel();
await model.performOperation(async (operation) => {
  const constructionLineRef = operation.createConstructionLine(
    model,
    new Point3d(1, 1, 1),
    new Point3d(10, 10, 10),
  );
  const constructionLine =
    await operation.entityForRef(constructionLineRef);

  console.log("ConstructionLine", constructionLine);
}, "Creating a ConstructionLine");

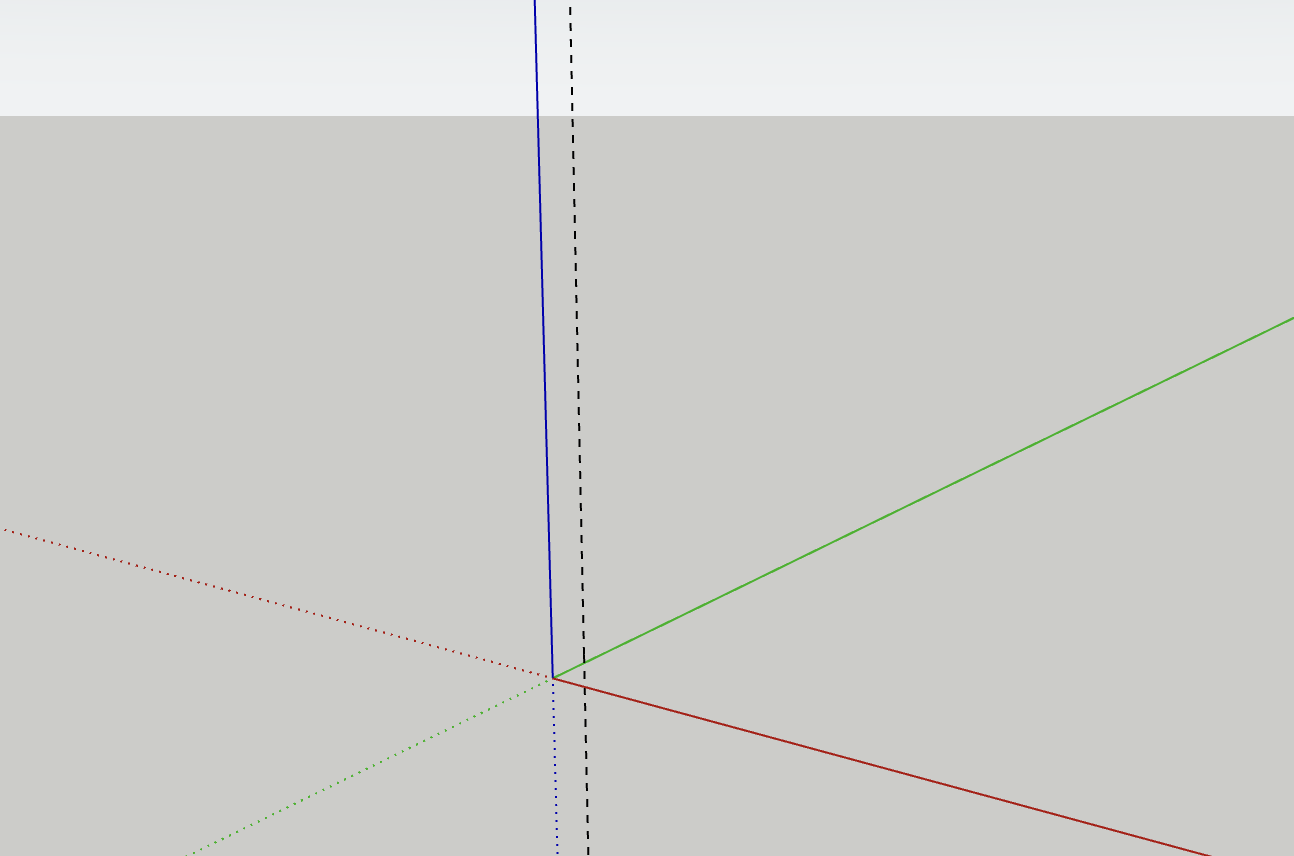

Creating an infinite ConstructionLine

let model = await SketchUpApi.getActiveModel();
await model.performOperation(async (operation) => {
  const constructionLineRef = operation.createConstructionLine(
    model,
    new Point3d(1, 1, 1),
    new Vector3d(0, 0, 1),
  );
  const constructionLine =
    await operation.entityForRef(constructionLineRef);

  console.log("infinite ConstructionLine", constructionLine);
}, "Creating an infinite ConstructionLine");
